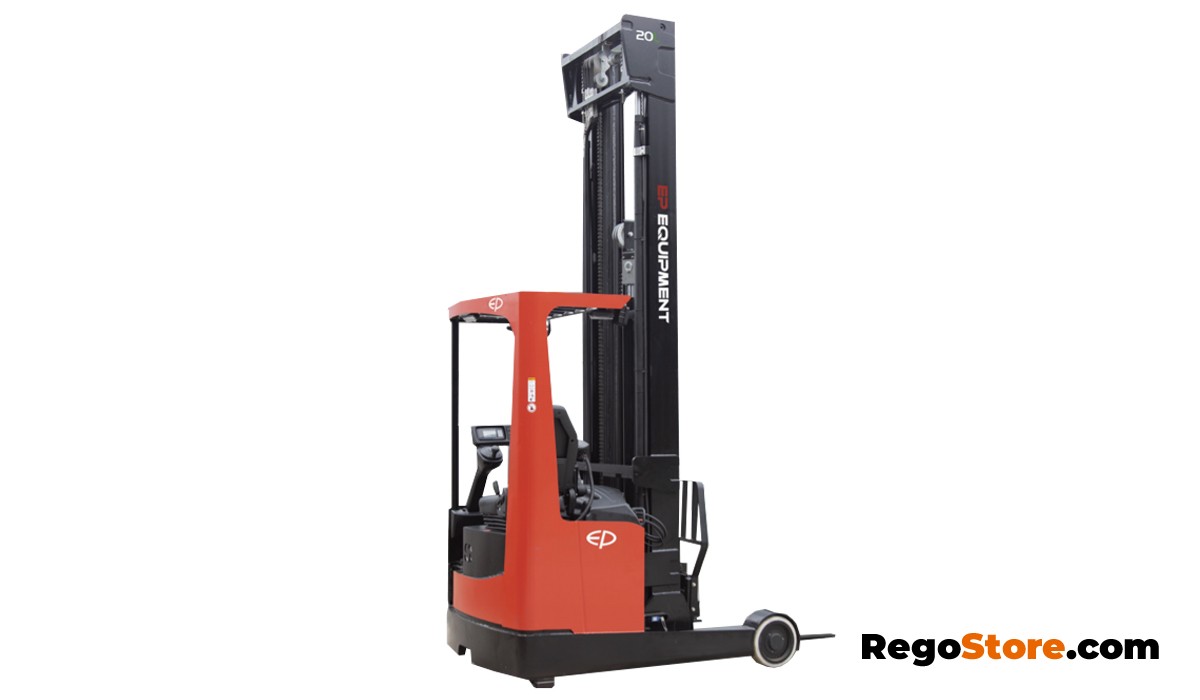

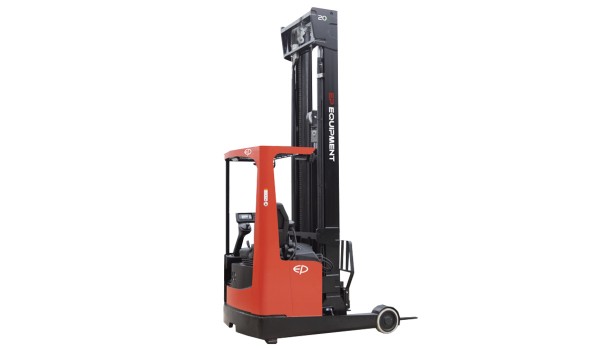

Reach truck REGO EP CQD20L - 2.0t.

Basic price

On request

Extras Delete

€ 0

Total (no VAT)

On request

Price VAT included

On request

Added to cart successfully.
Complete the order

Configurator

Mast:

Extras:

Side shifter On request

I want a different length of forks On request

Wireless camera On request

Cold storage use On request

Battery trolley for battery change On request

Lateral battery change On request

Water auto-filling system On request

Blue light On request

Fire extinguisher On request

Technical data

Model	Reach truck REGO EP CQD20L
Capacity	2t.
Machine weight with battery	3510 kg.
Lifting height (standard)	3000 mm.
Max. lifting height (option)	12000 mm.
Fork dimensions	40×120×1070 mm.
Turning radius	1770 mm.
Propotion valve	Yes
Battery voltage	48V/360Ah
Max. gradeability, laden/unladen	10/15 %

Files

pdf 02-CQD16L-20L-EN-Brochure.pdf (4.27 MB)

Information

Cat. №: CQD20L

High stability
Excellent visibility
Compact structure
Lithium-ion battery

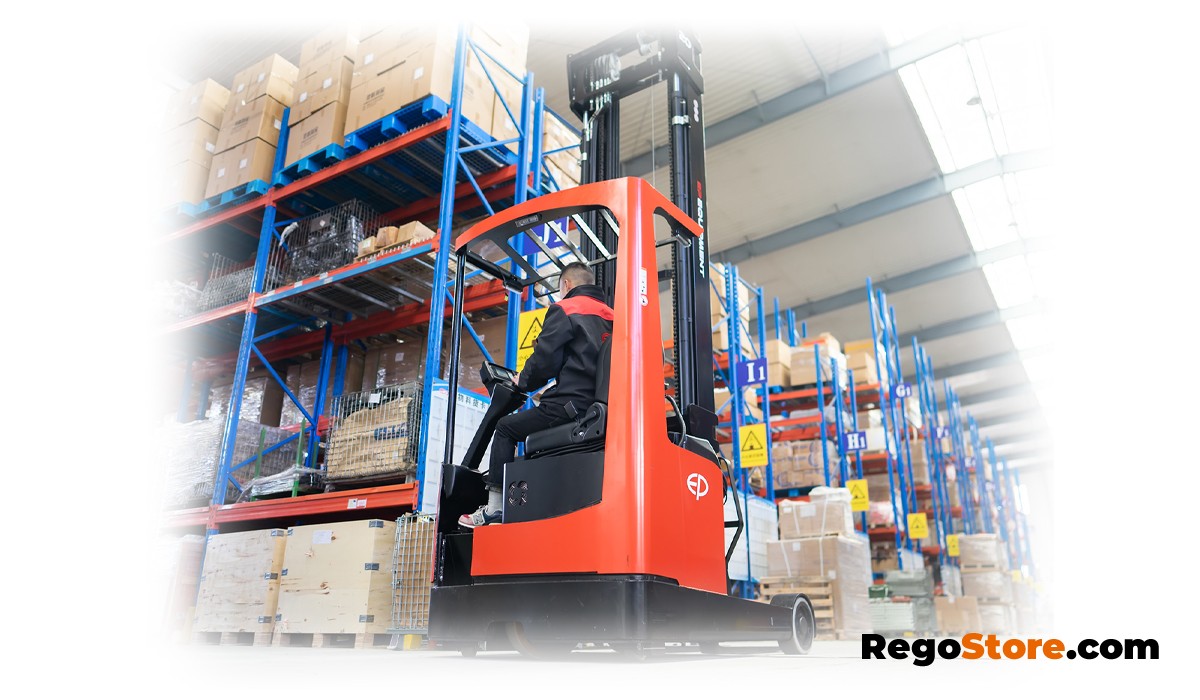

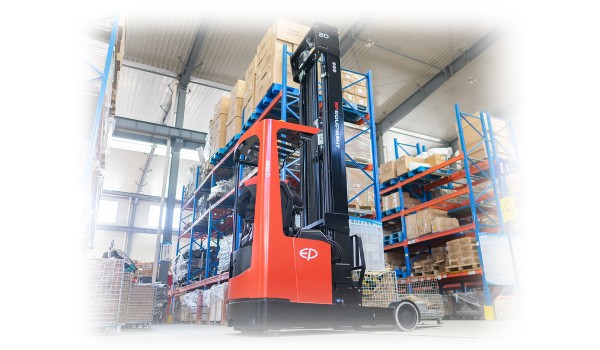

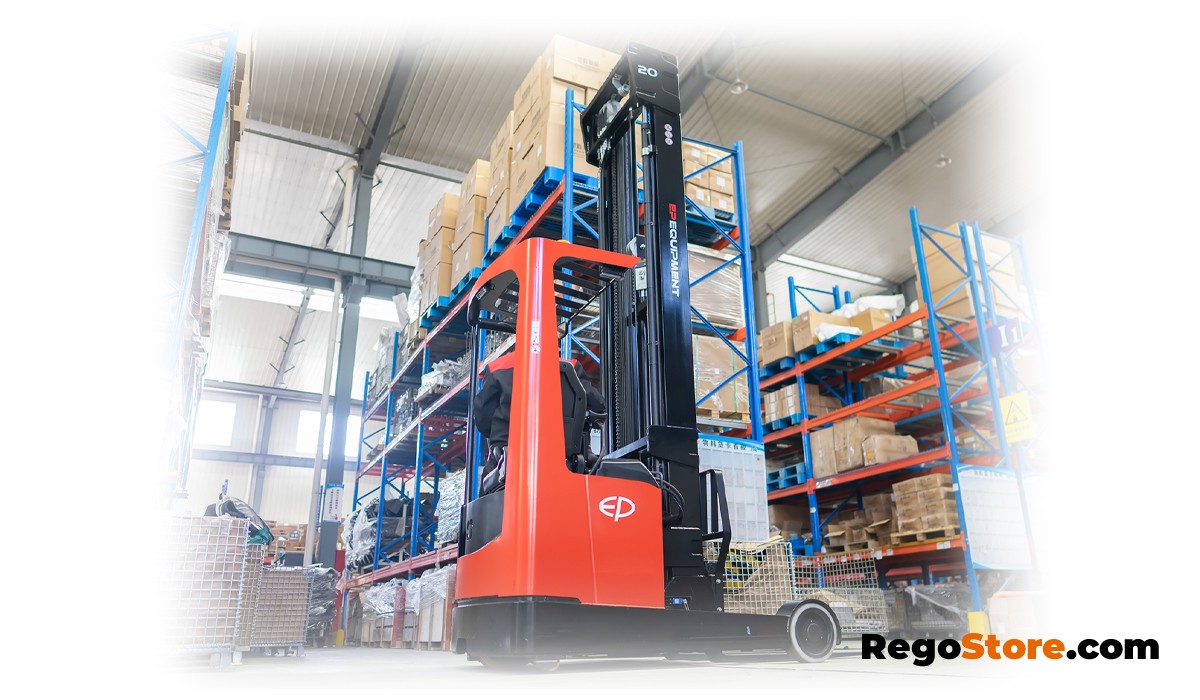

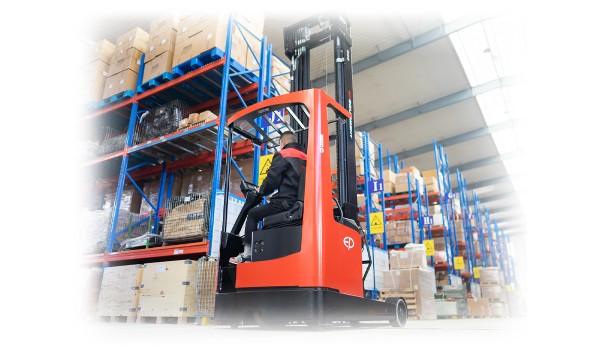

Reach truck REGO EP CQD20L is fully designed around all the advantages of EP Li-Ion technology. With the compact structure, reach truck REGO EP CQD20L is the perfect tool for transportation and high lifting operation in medium to large warehouses, regardless of wide or narrow-aisle racking settings. Reach truck REGO EP CQD20L is of tremendous help when material handling involves numerous movements at height storage and in confine buildings for industries such as logistics, textile and home appliance manufacturing.

Reach truck REGO EP CQD20L is available with the following standard options: front LED work lights, warning light, half speed function in turning, height limitation, built-in side shifter, rear view mirror, seat switch that prevents the machine from operating at absence of the operator.

Reach truck REGO EP CQD20L - capacity - 2t.

1 year warranty

Warranty Terms and Conditions

Excellent visibility

Thanks to the efficient arrangement of all hydraulic connections and the lightweight mast of the machine, the visibility and flexibility of the reach truck REGO EP CQD20L are significantly improved.

High stability

The low center of gravity and the new mast construction improve the stability of the reach truch REGO EP CQD20L. The maximum lifting height is 12000 mm.

Lifting operation

The REGO EP CQD20L reach truck offers powerful performance and quiet operation through upgraded hydraulic pumps and powerful 20 kW lifting motors. The updated technology significantly increases operating efficiency by 50%, reduces operating noise by 10 dB and energy consumption by 30%.
